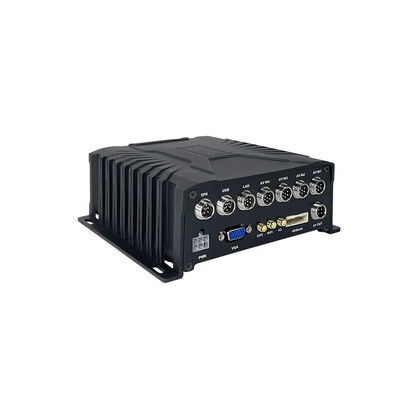

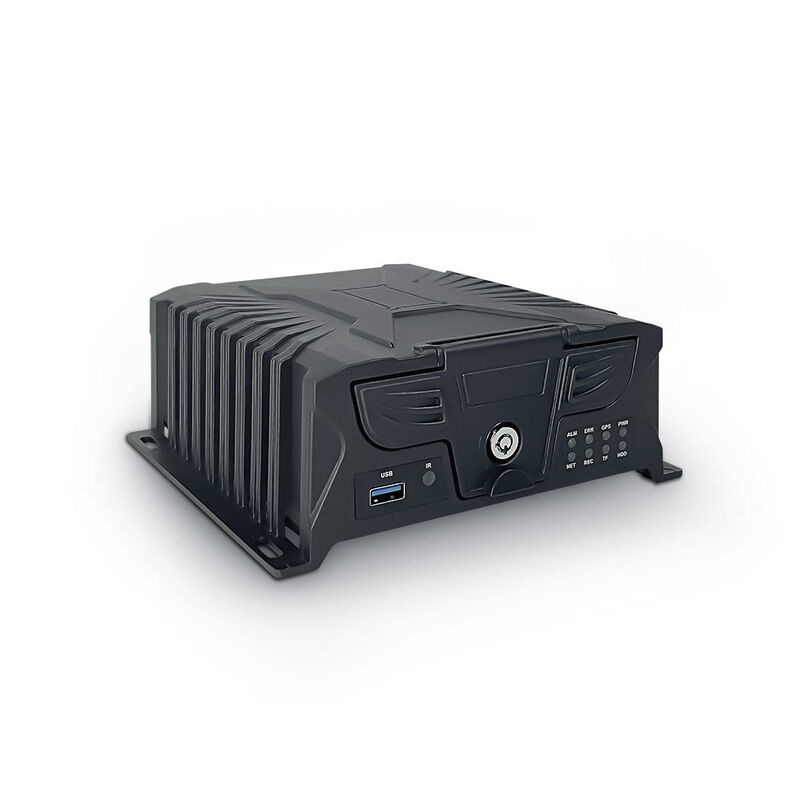

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Datos del producto:
| Lugar de origen: | shenzhen |
| Nombre de la marca: | Oxiang /OEM |
| Certificación: | CE.RoHS,FCC |
| Número de modelo: | MD264 |
|
Información detallada |
|||
| Red: | Wi-Fi de 2,4 GHz (IEEE 802.11 b/g/n) | LED rojo parpadea: | Encendido OK, esperando conexión WiFi |
|---|---|---|---|
| Tipo de energía: | Batería recargable 18650 o cable duro AC12V-24V | CONSUMO: | Modo de trabajo: 170 mA Modo de espera: 200 μA |
| Peso: | 600 g | Rango de recogida: | 5 metros |
| Humedad de trabajo: | < 95% | Función del mensaje: | Mensaje de las ayudas que sale de la función |
| Obturador: | 1/25~1/100, 000 por segundo | HUMEDAD RELATIVA: | 85% sin condensación |
| IR Distancia: | 3 metros | Sensor de imagen: | SC2335/SC233A |
| Ángulo horizontal: | ángulo horizontal 140 | Ángulo de detección: | 110° |
| Función: | 3G/4G/GPS/WIFI | Fuerza: | DC12V/2A |
| Ajuste de la imagen: | Soporte HD/SD Soporte Espejo | Tasa impermeable: | IP55 |
| Cámara: | 1 megapíxel, OV9732 (gran angular de 125°) | Gran ángulo: | 130 grados |
| Tamaño de pantalla: | 7 pulgadas | Resolución de entrada de la cámara: | AHD1080P/720P/CVBS: el número de unidad de control de las emisiones de gases de efecto invernadero |
| Tipo de sensor: | Cuenta video, exactitud del 98% | Dimensión del host: | 200(largo) x187(ancho) x62(alto) mm |
| Compresión: | H.265 | Entrada de voltaje: | adaptarse a 8 a 36 V ultra ancho |
| Soporte de software: | CMSV6 y nuestra plataforma privada | Garantía: | 12 meses |
| SDK: | SDK gratuito para el segundo desarrollo | Transferencia directa de WIFI: | Apoyo |
| Interfaz de operación: | Interfaz gráfica de usuario (menú OSD) | Personalización: | Sí |
| Impermeable: | IP69K | A prueba de choques: | Antivibración doble |
| Funciones: | Contador de personas, 3G, GPS, sensor G, UPS | ||
| Resaltar: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Descripción de producto
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
